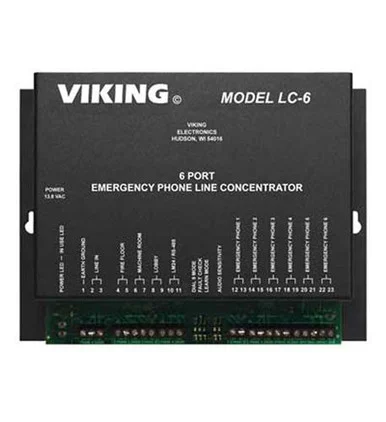

Viking Electronics LC-6 Phone Line Concentrator (LC6)

Description

This item is brand-new, factory sealed.

Concentrate up to Six Emergency Phones and Comply with ASME A17.1 Elevator Code

TheLC-6Line Concentrator eliminates the monthly charges for a dedicated line to each elevator. TheLC-6is designed to be used with the Viking1600A SeriesElevator Phones. Up to six of these emergency phones can communicate with authorized personnel on 3 other phones within a building, or add a telephone line to allow communication outside the building. A call initiated by an emergency phone can dial internally, externally, or both. Any other phones that are activated will be bridged with authorized personnel, thus fulfilling ASME A17.1 requirements.
All telephone line inbound calls are answered by theLC-6. A touch tone command will route the call to any of the phone ports. If no command is detected within 4 seconds, the call will be routed to the last emergency phone that was used. This allows emergency personnel to easily call back to the same phone.
Connections include a Fire Floor phone, a Machine Room phone and a Lobby phone. An output is also provided for driving up to three Viking LM-24D displays to show status of all ports.
Per ASME A17.1 requirements, theLC-6can verify the operability of the telephone line on a daily basis and with the optional Viking modelLV-1Kline verification alarm panel, can display an “Elevator Communications Failure”.

Features

Application/Usage:

Emergency Phone
Area of Refuge

Compatibility:
Viking 1600A Series Elevator Phones
