Description
This item is brand-new, factory sealed.

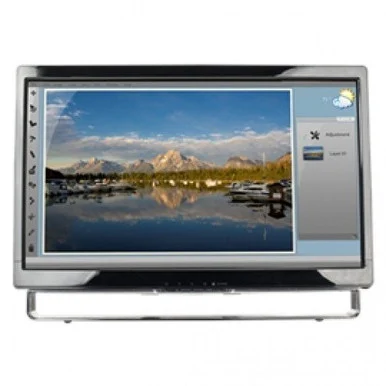

The PXL2230MW 22″ widescreen multi touch LCD monitor is optimized for consumer multimedia applications. Designed for only Microsoft Windows 7, the monThe PXL2230MW 22″ multi touch full HD widescreen edge-lit LED LCD is optimized for consumer multimedia applications. Designed for Microsoft Windows 7, the monitor features an optical multi touch screen (USB interface). The PXL2230MW offers VGA, DVI-D and HDMI video inputs for flexible monitor setup and integrated speakers. The thin black bezel makes the PXL2230MW ideal for multiple monitor applications.Product Name
PXL2230MW
Planar Part Number
997-7039-00
Viewable Size
21.5″ diagonal (18.77″ horizontal x 10.56″ vertical)
Aspect Ratio
16:9Contrast Ratio (typ)
1000:1
Viewing Angle (typ)
170 Horizontal and 160 Vertical
Response Time (typ)
5 msBrightness (Typical)
250 cd/m
Display Type
Edge-Lit LED LCDDisplay Resolution
1920 x 1080, full HD
Tilt Range
0 to +20
Palette
16.7 million colors
Pixel Pitch
0.248 mmRefresh Rate
N/A
Panel Depth
2.81″
Video Inputs
Analog and Digital (DVI-D w/HDCP, HDMI)Audio Output
2 speakers, 1W/ch
External Connections
D-sub 15-pin, DVI-D 24-pin (w/HDCP), HDMI, USB-B,Audio Port, AC Power-In
Compatibility
Windows 7Power Supply
Internal
Power Consumption
N/A
Power Requirements
100-240 VAC, 50/60 Hz
VESA Compatible/Location
Built-in 100 mm VESA, Back of monitorProduct Approvals
UL/cUL, FCC-B, CE, RoHS
Options / Features
Optical Touch technology, multi -touch capability, compatible with Microsoft Windows 7 operating system, HID compliant – no drivers needed for touchscreen operation. Includes a built in stylus.Item Dimension (L”xW”xH”):
20.3 x 14.7 x 4.9
Weight:
15.9 lb
Warranty Information:
3 Years Customer First Warranty Featuring FREE 2-Day Advance Replacement
Features
Package Contents:
- PXL2230MW Touchscreen LCD Monitor
- Stylus
Certifications & Standards:
- UL/cUL
- FCC-B
- CE
Environmentally Friendly:
Yes
Energy Star:
No
Platform Supported:
PC
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)
