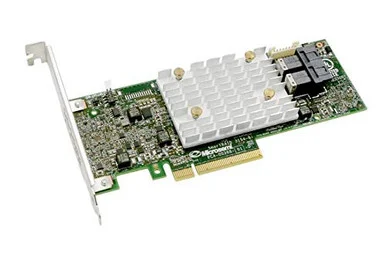

Microchip Adaptec® SmartRAID 3102E-8i Single 2304200R

Description

This item is brand-new, factory sealed.

Features:
Accelerates storage with 2 GB of high-speed DRAM cache
RAID levels: 0, 1, 10, 1 ADM and 10 ADM
Up to 8 native SAS/SATA ports in a LP/MD2 design
1.6M random read 4 KB IOPS2
Industry’s lowest-power 28 nm SmartROC SAS/SATA protocol controller
Quality and reliability through the unified, hardened Smart Storage stack, which is deployed in over 30M servers
The SmartRAID 3102E-8i 12 Gbps PCIe Gen 3 SAS/SATA RAID adapter delivers an entry-level solution with the robustness and performance of hardware RAID and the industry leading power of the SmartRAID 3100 series. This solution provides significant performance acceleration over other entry-level adapter card solutions through a built-in 2 GB DRAM cache , thus delivering a performant hardware RAID solution for cost-sensitive platforms that dont require the full capabilities of our full featured SmartRAID adapters. The SmartRAID 3102E-8i supports RAID levels: RAID 0, 1, 1 ADM, 10, and 10 ADM.
With broad operating system support and ecosystem compatibility, SmartRAID adapters are easy to implement and scale, and the unified maxView management tools and drivers across the Adaptec HBA, RAID, and expander solutions enable easy manageability across the entire product line.
SmartRAID 3102E-8i RAID adapters are ideal solutions for of industrial PC workstations or entry-level servers that require connectivity to 6G SATA or SAS-3 drives for redundant boot support and I/O intensive applications such as databases or video editing.Product Type
RAID AdapterPort Count
8 internalInterface
8-Lane PCIe Gen 3RAID Level
Hardware RAID 0, 1, 10, 1 ADM and 10 ADMForm Factor
Low-profile, MD2MTBF at 40^oC
1.37M hoursController
12 Gbps SmartROC 3100Connectors
2 (x4) SFF-8643Cache
2 GB DDR4/2100 MHzItem Dimension (L inchxW inchxH inch)
15 x 10 x 2
Weight
3.00 lb
Warranty Information
3 Years

Features

Environmentally Friendly:
Yes
Platform Supported:

PC
Linux

Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
Singapore
