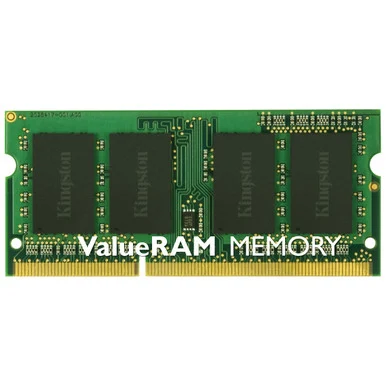

Kingston ValueRAM 8GB DDR3 SDRAM Memory Module (KVR16LS11/8) KVR16LS11/8

Description

This item is brand-new, factory sealed.

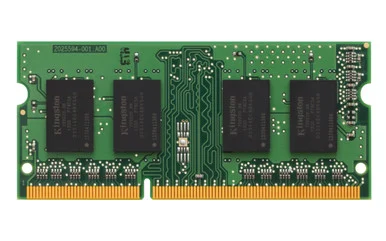

This document describes ValueRAM’s 1G x 64-bit (8GB) DDR3L-1600 CL11 SDRAM (Synchronous DRAM), 2Rx8, low voltage, memory module, based on sixteen 512M x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR3-1600 timing of 11-11-11 at 1.35V or 1.5V. This 204-pin SODIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:
Features:

JEDEC standard 1.35V (1.28V ~ 1.45V) and 1.5V (1.425V ~1.575V) Power Supply
VDDQ = 1.35V (1.28V ~ 1.45V) and 1.5V (1.425V ~ 1.575V)
800MHz fCK for 1600Mb/sec/pin
8 independent internal bank
Programmable CAS Latency: 11, 10, 9, 8, 7, 6
Programmable Additive Latency: 0, CL – 2, or CL – 1 clock
8-bit pre-fetch
Burst Length: 8 (Interleave without any limit, sequential with starting address 000 only), 4 with tCCD = 4 which does not allow seamless read or write [either on the fly using A12 or MRS]
Bi-directional Differential Data Strobe
Internal(self) calibration : Internal self calibration through ZQ pin (RZQ : 240 ohm1%)
On Die Termination using ODT pin
Average Refresh Period 7.8us at lower than TCASE 85C, 3.9us at 85CAsynchronous Reset
PCB: Height 1.18 (30mm), double sided component
CL (IDD)
11 CyclesRow Cycle Time (tRCmin)
Refresh to Active/Refresh Command Time (tRFCmin)
260ns (Min)Row Active Time (tRASmin)
35ns (Min)Maximum Operating Power
(1.35V)2.721WUL Rating
94V0Operating Temperature
0 C to 85 CStorage Temperature
-55 C to +100 CItem Dimension (L”xW”xH”)
2.17 x 6.7 x 0.52
Weight
0.15 lb
Warranty Information
Lifetime Manufacture

Features

Environmentally Friendly:
Yes
Compatibility:
Motherboards:

• Alienware – Alienware 14
• Alienware – Alienware 17
• Alienware – Alienware 18
• ASUS/ASmobile – G750 Notebook G750JH
• ASUS/ASmobile – G750 Notebook G750JW
• ASUS/ASmobile – G750 Notebook G750JX
• ASUS/ASmobile – VivoBook S551LA
• ASUS/ASmobile – VivoBook S551LB
• Clevo – Notebook P150SM
• Clevo – Notebook P151SM1
• Clevo – Notebook P157SM
• Clevo – Notebook P170SM
• Clevo – Notebook P177SM
• Clevo – Notebook P370SM
• Clevo – Notebook P375SM
• Clevo – Notebook W350STQ
• Clevo – Notebook W370ST
• Clevo – Notebook W650SR
• Gigabyte – P25K Notebook
• Gigabyte – P25W Notebook
• Gigabyte – P27K Notebook
• Gigabyte – P34G Notebook
• Gigabyte – P35K Notebook
• Intel – D33217CK Next Unit of Computing (NUC)
• Intel – D33217GKE Next Unit of Computing (NUC)
• Intel – D53427RKE Next Unit of Computing (NUC)
• Intel – D73517KK Next Unit of Computing (NUC)
• Intel – DC3217BY Next Unit of Computing (NUC) Kit
• Intel – DC3217IYE Next Unit of Computing (NUC) Kit
• Intel – DC53427HYE Next Unit of Computing (NUC) Kit
• MSI – Notebook GE40 2OC
• MSI – Notebook GE60 2OE
• MSI – Notebook GE70 2OE
• MSI – Notebook GX70

Environmental Compliance:

Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)
