Description
This item is brand-new, factory sealed.

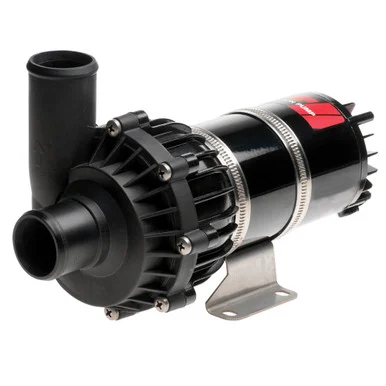

CM90 Circulation Pump – 23.7GPM – 12V – 1-½” Outlet
A line of compact magnetic driven centrifugal pumps which combine high flow
rates with very low electric current consumption. Suitable for fresh water,
ethylene glycol and salt water circulation.
System Pressure:-0.3 to +3.0 bar; stationary max. 4.0 bar
Liquid:water/glycol mixture; max. 60% glycol, fresh and salt water
Motor Service Life:More than 5,000 hours at nominal voltage 10,000
start/stops. Interchangeable motor.
Motor, Voltage:Nominal 13.6V DC for use between 10-16V Nominal 27.2V
DC for use between 20-32V
Input Power:Max. 125W
Dry Running:30 minutes
Dimensions:244mm (L) x 120mm (W) x 150mm (H)
Ports:Ø 20mm (3/4″) & Ø 38mm (1-1/2″)
Weight:3.0kg (6.6lbs)
Body:PPA, glass-fiber reinforced
Mounting:Separate universal bracket for flat surfaces
