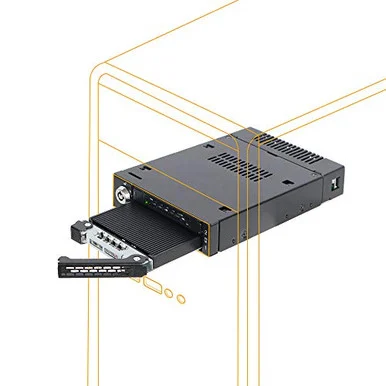

Icy Dock ToughArmor MB834M2K-B Drive Enclosure for 3.5″ M.2, PCI Express NVMe – Mini-SAS HD Host Interface Internal – Black

Description

This item is brand-new, factory sealed.

Introducing ToughArmor MB834M2K-B, the worlds first ruggedized M.2 PCIe NVMe SSD tool-less removable rack. Your M.2 NVMe SSD no longer requires to be installed on a motherboard or a riser card with a tiny screw, but it can now be installed and accessed from the front of your computer without any tools! The ToughArmor MB834M2K-B comes with a patent-pending tool-less M.2 drive installation design which will alleviate the pain that many users experience when installing M.2 drives and offer easy drive maintenance and system upgrading. The ToughArmor MB834M2K-B supports blazing-fast PCIe x4 transfer speed up to 32Gb/s via MiniSAS HD (SFF-8643) and accepts all standard M.2 drives lengths from 30mm to 110mm (2230, 2242, 2260, 2280, 22110). In addition, while working together with numbers of ventilation holes around the enclosure, each drive tray is equipped with a high efficiency aluminum heat sink to ensure all the M.2 NVMe SSDs remains within their optimal temperature even when it is under full load.
Ultimately, your drives will be well protected within this full metal drive enclosure and a barrel key lock to prevent any unauthorized physical access.
M.2 Drive is No Longer Hidden
A typical M.2 drive is installed on a motherboard or a riser card and secured by a tiny screw, and it can be a very troublesome and time-consuming process to install or remove the drive physically. However, with ICY DOCK’s ToughArmor MB834M2K-B, M.2 drives are brought into the front of a computer case and makes M.2 NVMe SSD installation and removal a more straightforward and efficient process.Color :
BlackSupport Drive Size :
2 x M.2 PCIe NVMe SSD 2230/2242/2260/2280/22110Compatible Drive Type :
NVMe M.2Number of Drives :
2Drive Bay :
1 x external 3.5″ device bayHost Interface :
2 x miniSAS HD (SFF-8643)Power Input :
1 x 15pin SATA power connectorTransfer Rate :
Up to 32Gbps (Depending on hard drive speed)Support HDD Capacity :
No LimitationDrive Cooling :
Metal heat dispersion with thermal pad for passive coolingStructure / Material :
Metal with partial plasticSupport Hot-Plug :
Yes (host must support hot-plug function)Drive Security :
2 segment key lockDrive Activity LED Indication :
Drive power: solid green, HDD access: flashing greenPackage contents :
Device, user manual, screws, thermal pads.M.2 Connector Insertion Rate :
5,000Humidity :
5%-65% RHOperating Temperature :
0^oC to 60^oC (32^oF to 140^oF)Storage Temperature :
-35^oC to 70^oC (-31^oF to 158^oF)Compliance :
CE, RoHS, REACH

Features

Package Contents:

• 2x M.2 PCIe NVMe SSD Mobile Rack for External 3.5″ Drive Bay
• User Manual
• Screws
• Thermal Pads

Environmentally Friendly:
Yes
Environmental Compliance:

Restriction of Hazardous Substances (RoHS)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Country of Origin:
China
