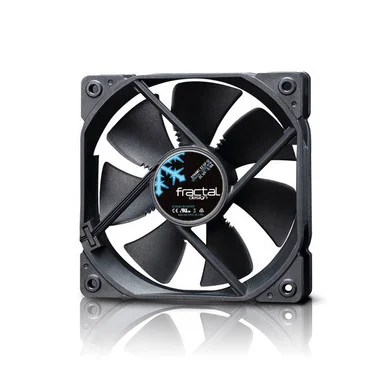

Fractal Design Dynamic X2 GP-12 Black (FD-FAN-DYN-X2-GP12-BK)

Description

This item is brand-new, factory sealed.

Specifications

• Mfr Part Number:FD-FAN-DYN-X2-GP12-BK
• Features:
  • High grade LLS bearing with class leading 100,000 hours MTBF
  • Equipped with a counter-pull magnet that reduces the axial tension on the bearing
  • Fan geometry optimized for a good balance between static pressure and maximum airflow, resulting in good performance in all usage scenarios
  • Aerodynamically shaped stator struts including the wire strut. Helps reduce noise and unwanted turbulence
  • Stator struts sit on a wide angle to the trailing edge of the blades which result in a lower noise level and smoother noise profile
  • Strategically placed notches near the fan hub on the trailing edge of the blades further reducing the humming noise produced when the blades pass the stator struts
  • A “trip wire” on the rear side of the blades near the leading edge. The trip wire introduces a larger turbulent boundary layer at an earlier stage, this delays the layer separation and improves both airflow and noise characteristics.
  • The customized design of the Dynamic Series fans contributes to a beautiful, cool build
• Rotational Speed:1200 RPM
• Acoustical Noise:19.4 dB (A)
• Maximum Air Flow:52.3 CFM
• Maximum Pressure:0.88 mm H2O
• Actual Input Power:1.32 W
• Maximum Rated Input Current:0.18 A
• Nominal Input Voltage:12 V
• Minimum Startup Voltage:4 V
• Screw Hole Pattern:105 x 105 mm
• Connector:3-pin fan header
• Bearing:LLS
• Number of Blades:7
• MTBF:100,000 hours
• Cable Length:500 mm
• Cable Type:Black Ribbon Cable
• Color:Black blades, Black frame
• Dimensions:120.0 x 120.0x 25.0mm
• Weight:119.0 g
• Package Contents:Dynamic X2 Series fan; Screw pack with 4 metal fan screws

Features

Package Contents:

• Dynamic X2 GP-12 Black
• 4 x Metal Fan Screws

Environmentally Friendly:
Yes
Application/Usage:
Case
Environmental Compliance:
Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin:
China
