Description
This item is brand-new, factory sealed.

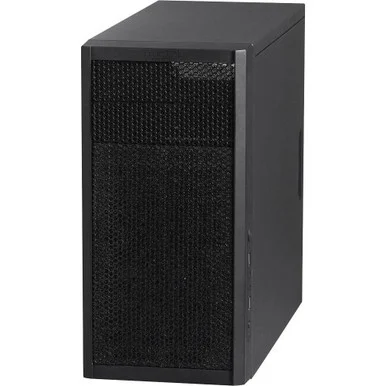

The Fractal Design Core Series offers a unique combination of design, cooling performance and value.
The Core 1000 USB 3.0 brings forth many features usually only seen in more expensive and larger cases. It supports long graphics cards up to 350mm in length as a result of the innovative, vertical HDD mounting bracket. The front panel is easily removable and pre-fitted with fan filters to ensure a dust free interior.
The sleek black interior is contrasted with white expansion slots while all HDD mountings are fitted with anti-vibration silicone grommets for optimal silence.
Key features
Simple yet elegant mesh front panel allowing for increased airflow through the case
Optimized for performance in a compact, micro-ATX form factor with multiple cooling options
NEW: 1 x USB 3.0 with internal connector, 1 x USB 2.0
One Silent Series R2 fan included: 1 x 120mm in front
A total of 3 fan slots (1 x 120mm in front, 1 x 92mm in rear, 1 x 120mm in side panel)
Innovative HDD positioning which mounts the HDD or SSDs vertically on the mounting bracket with anti-vibration silicone grommets
Supports long graphics cards up to 350mm in length
Supports various combinations of drive sets ups: 3 x 2.5″ SSD, 2 x 3.5″ HDD or 1 x 2.5″ SSD + 1 x 3.5″ HDD
Dust filter for front fan position
Specifications
mATX, Mini ITX, DTX motherboard compatibility
Drive bay capacity: 2 – 3.5″ HDD or 3 – 2.5″ SSD or 1 – 3.5″ HDD + 1 – 2.5″ SSD
2 – ODD slots
1 – FDD slot, using convertor in ODD slot (convertor included)
4 expansion slots with sleek white painted brackets
Supports graphic card up to 350mm in length with one HDD mounted
Supports graphic card up to 210mm in length with two/three HDD mounted
Supports CPU coolers up to148mm in height
Supports full size ATX PSU, maximum length about 185 mm if an optical drive is mounted
Cooling system
Front: 1 – 120mm fan (included is a hydraulic bearing 120mm Silent Series R2 fan, 1200 RPM speed)
Rear: 1 – 92mm fan (not included)
Side: 1 – 120mm fan (not included)
Front interface
1 – USB 3.0 with internal connector
1 – USB 2.0
1 – 3.5mm audio in (mic)
1 – 3.5mm audio out (headphone)
Power button with LED
HDD LED
Reset button
Package contents
Core 1000 USB 3.0 computer case
Accessory box
User manual
Item Dimension (L”xW”xH”)
19 x 9 x 17
Weight
21.00 LB
Warranty Information
2 years
Specs
| Power Description | |
| Number of Power Supplies Supported | 1 |
| Physical Characteristics | |
| Product Material |
|
| Form Factor | Mini-tower |
| Weight (Approximate) | 9.04 lb |
| Product Color | Black |
| Height | 14″ |
| Color Family | Black |
| Width | 6.9″ |
| Depth | 16.5″ |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Interfaces/Ports | |
| Side Audio In | Yes |
| Total Number of Audio Out Ports | 1 |
| Front Audio In | Yes |
| Front Audio Out | Yes |
| Side USB | Yes |
| Front USB | Yes |
| Total Number of USB Ports | 2 |
| Side Audio Out | Yes |
| Bays | |
| Number of External 5.25″ Bays | 2 |
| Number of Total Expansion Bays | 4 |
| Number of Internal 3.5″ Bays | 2 |
| General Information | |
| Brand Name | Fractal Design |
| Marketing Information | The Core 1000 brings many features usually only seen in more expensive and larger cases. It supports long graphics cards up to 350mm due to the innovative, vertical and removable HDD mounting bracket. The front panel’s easily removable and pre-fitted with fan filters to ensure a dust free interior. The sleek black interior is matched and contrasted with white expansion slots. Similar to the Define Series, all the HDD trays are fitted with anti-vibration silicon grommets for optimal silence. |
| Product Type | Computer Case |
| Product Name | Core 1000 System Cabinet |
| Manufacturer | Fractal Design |
| Manufacturer Part Number | FD-CA-CORE-1000-BL |
| Product Model | 1000 |
| Product Line | Core |
| Technical Information | |
| Motherboard Supported |
|
| Number of Fans Supported | 3 |
| Number of Fans Installed | 1 |
