Fractal Design Case FD-CA-MESH-C-BKO Meshify C ATX/mATX/ITX

Description

This item is brand-new, factory sealed.

Meshify strikes an aggressive pose in the Fractal Design lineup with unparalleled cooling performance and a defiant new look. Like black diamond facets, the angular asymmetry of the Meshify C carves a space uniquely its own as a new force in high-airflow design.;
An open ATX layout with intelligent space utilization creates an unrestricted airflow path from the mesh front intakes directly through key components to exhaust, ensuring heat is never an issue. The Meshify C has a remarkably compact footprint with the high-end component support of a larger tower, and with seven fan mounts and multi-radiator liquid cooling capability, it has the cooling capacity to match.
When performance is top priority and compromise is not an option, Meshify has you covered in style.
Key features
Streamlined high-airflow design
The performance and capacity of a larger tower in a remarkably compact mid-tower size
Newly designed angular mesh front panel maximizes air intake
Distinctive new styling with stealthy black-on-black aesthetic
Flexible storage options with room for up to 5 drives
Sturdy steel drive trays with vibration-dampening rubber grommets cushion hard drives for smooth, quiet and reliable operation

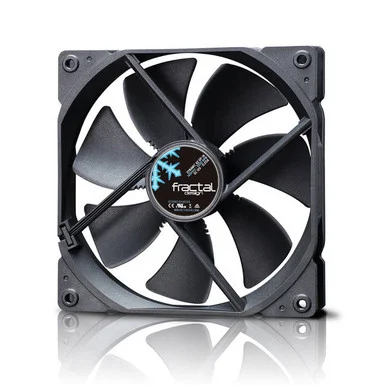

Two preinstalled Fractal Design Dynamic X2 GP-12 120 mm fans deliver optimum airflow with minimal noise
Open interior layout creates an unobstructed airflow path from front intake to rear exhaust
Easy-to-clean filters on the front, top and base with full PSU coverage and convenient front access
Full length power supply shroud conceals drive cage and excess cabling for unrestricted airflow and a clean looking interior
Up to 35 mm of space behind motherboard plate with grommetted pass-throughs for clean cable routing
3.5″ or 2.5″ Drive capacity
2Dedicated 2.5″ drive capacity
3Expansion slots
7Motherboard compatibility
ATX, mATX, ITXPower supply type
ATXTotal fan mounts
7Front fan
3x 120 or 2x 140
1x Dynamic X2 GP-12 included
Top fan
2x 120/140Rear fan
1x 120
1x Dynamic X2 GP-12 included
Bottom fan
1x 120Side fan
NoDust filters
Bottom fan + PSU
Front fans
Top fans
Front radiator
120/240/360mm
140/280mm
Top radiator
120/240mm (max component height on motherboard 40mm)Rear radiator
120mm (max width 125mm)Power supply depth limit
Maximum 175mm recommendedGraphics card length limit
Max 315mm with front fan mountedCPU cooler height limit
170mmCable routing
15-35mm spaceCable routing grommets
Yes

Features

Package Contents:

• Meshify C Computer Case
• User Manual
• Accessory Box
• Top Filter
