Electronic Specialties 193 12/24 Volt Diagnostic Relay Buddy Pro Test Kit 193_45_1

Description

This item is brand-new, factory sealed.

Features and Benefits

• Tests both 12 and 24 Volt relays – 4 and 5 pin
• Diagnostic trouble codes indicate the cause of failure – 3 different codes

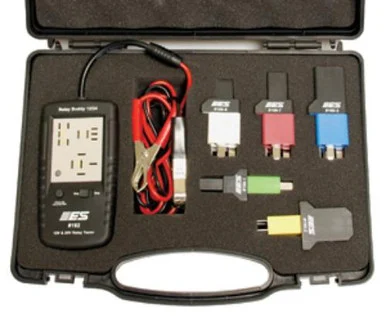

• Pro test kit includes 5 new test adapters for shielded and new relay types
• Cycles relay 10 times: Green Light if relay is good, red light if relay is bad plus one of 3 diagnostic codes
• Tester uses 12V or 24V power from the vehicle battery

Relay Buddy 12/24 is a quick go / no-go tester for the most commonautomotive relays. This new version Relay Buddy tests both 12 and 24volt relays. If the relay fails the test, 3 different trouble codes willadvise you of the possible causes for the failed relay. In kit form,#193 Relay Buddy 12/24 tests 5 different relay
types. Relay Buddy 12/24 provides you with an indication of the generalhealth and functioning of the relay switch contacts and coil. It willcheck the control side of the relay by applying a signal to the relaycoil while it checks for proper functioning of the relay contacts. RelayBuddy operates the relay several times during each test session as itwatches for consistency in every cycle. Relay Buddy will fail the relayand light the RED LED if any one of the cycles proves unsuccessfulduring the test session.
