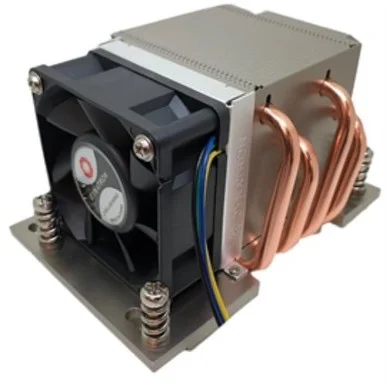

Dynatron A26 Cooling Fan/Heatsink

Description

This item is brand-new, factory sealed.

Specifications

• Mfr Part Number:A26
• CPU Application:AMD Socket SP3 for 2U Server and up
• Material:Aluminum Heatsink with Heatpipe Embedded
• Fan Dimension:60.0 x 60.0 x 25.0 mm
• Speed:
  • At Duty Cycle 20%:1600200 RPM
  • At Duty Cycle 50%:400010% RPM
  • At Duty Cycle 100%:800010% RPM
• Rated Voltage:12V
• Bearing:Ball Type, Double
• Power:
  • At Duty Cycle 20%:1.20 W
  • At Duty Cycle 50%:2.28 W
  • At Duty Cycle 100%:7.20 W
• Air Flow:
  • At Duty Cycle 20%:8.85 CFM
  • At Duty Cycle 50%:21.88 CFM
  • At Duty Cycle 100%:43.75 CFM
• Noise Level:
  • At Duty Cycle 20%:18.0 dBA
  • At Duty Cycle 50%:37.9 dBA
  • At Duty Cycle 100%:53.0 dBA
• Air Pressure:
  • At Duty Cycle 20%:0.76 mm-H2O
  • At Duty Cycle 50%:4.76 mm-H2O
  • At Duty Cycle 100%:19.04 mm-H2O
• Lead Wire Pin Out:
  • Pin1- (-)
  • Pin2- (+)
  • Pin3- (Techometer/Signal output)
  • Pin4- (PWM)
• Dimensions:119.0 x 79.0 x 65.0 mm
• Weight:450.0 g
• RoHS Compliant
