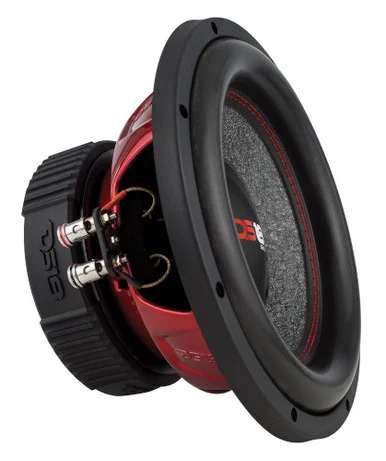

Ds18 Audio GENX104D 10″ Subwoofer Dual 4ohm Voice Coil 800 W

Description

This item is brand-new, factory sealed.

DS18 GEN-X104D Subwoofer in Black – 4 Layer Black Aluminum Voice Coil, 10″, 800W Max Power, 400W RMS, Dual 4 Ohms, DVC – Powerful Car Audio Bass Speaker (1 Speaker)

• AMAZING PERFORMANCE AND LOW FREQUENCIES – The GEN-X104D pounds out all of the power you need and handles low frequencies like a true 10″ subwoofer.
• POWERFUL BASS YOU CAN COUNT ON – The GEN-X104D delivers impressive 800W Max Power with 400W RMS at Dual 4 Ohm, once you hear it you’ll finally realize what big, rich bass sounds like.
• DUAL VOICE COIL (DVC) – Provides multiple options and flexibility to wire Parallel, Series, or Independent. DVC will make sure you get the most from your system. While typical subwoofers have a single voice coil, the Hooligan-X Series offers two
• UNMATCHED ENGINEERING – The GEN-X line of subwoofers come with a red steel basket, DVC, a paper/glass fiber cone, black aluminum voice coil cover, and foam edges all at an affordable price.
• HIGH-QUALITY MAGNET – Settle for nothing but the best with Ferrite magnets that produces a wider range of tones and can handle tremendous power at high volumes.
• NEVER STOP INNOVATING ATTITUDE – DS18 stands out from other brands with our progressive designs and unwavering commitment to delivering the most technologically up-to-date products on the market.

• Product Dimensions: 10 x 10 x 6.4 inches
• Item Weight: 8 pounds

GEN-X104D

General
Type Subwoofer
Size 10”
RMS Power 400W
MAX Power 800W
Impedance 4+4
Voice coil size 2”
Magnet Ferrite
Magnet Size 66oz
Frequency Response 25-6KHz

Materials
Frame Steel Basket
Cone Paper with Glass Fiber
Surround Foam Edge
Voice Coil Former Material Black Aluminum

Diameters
Mounting Cut-Out 9.21” (234mm)
Mounting depth 5.39” (137mm)
Overall Diameter 10.24” (260mm)
Net Weight 6kg

Enclosure Specifications
Optimum Sealed FT3 / Liters1 / 28.3
Optimum Ported FT3 / Liters1.32 / 37.3
Displacement0.04 FT3

Thiele & Small Parameter
Fs 54.6Hz
Re 3.2 + 3.2
Qes 0.616
Qms 5.191
Qts 0.551
Vas 10.65L
Xmax 17.5mm
