Description
This item is brand-new, factory sealed.
RM42300

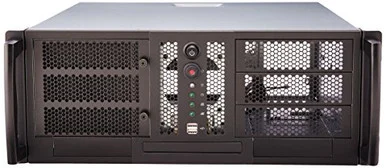

4U 17.5″ Compact Industrial Server Chassis
Equipped with shock isolated design solution, dust-proof filter on compact chassis size make it ideal for space constrained industrial applications.
Features & Benefits
Supports M/B up to 12 x 9.6
Available for rackmount and stand-alone installation
Dedicated 80 mm fan for center front HDD cooling
Shock isolated dampener solution on internal HDD and device protection
Card retainer to hold low profile and full height add-on cards
Front 120mm fan with filter for add-on card cooling
Optional second 3 x 5.25 drive cage for maximum configuration flexibility
Supports 1-door or 2-door front bezel configuration
Supports PS/2 single or mini-redundant PSUForm Factor
4UMB Form Factor
ATX (12 x 9.6)Drive Bays
External 3.5″1
External 5.25″3
Internal 3.5″4
Slim ODD1PSU Form Factor
PS/2 Single or Mini-redundantIndicators
1 x Power Status
1 x HDD Activity
2 x LAN ActivityFront Control
1 x Power On/Off
1 x System Reset
2 x USB 2.0/USB3.0(option)System Security
Intrusion Switch, Key lock on front doorCooling Fans
Front: 1 x 120mm (T equal 25mm), PWM, Rear: 2 x 80mm (T equal 25mm)(Option)Expansion Slots
7HDD Backplane
N/AFront Bezel
OptionItem Dimension (L”xW”xH”)
NA
Weight
28 lbs
Warranty Information
1 Year
Specs
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 28 lb |
| Cooler Type | Fan Cooler |
| Compatible Rack Unit | 4U |
| I/O Expansions | |
| Total Number of Expansion Slots | 7 |
| Interfaces/Ports | |
| USB Port Details | 2 x USB 3.0 |
| Front USB | Yes |
| Total Number of USB Ports | 2 |
| Bays | |
| Number of External 5.25″ Bays | 3 |
| Number of External 3.5″ Bays | 1 |
| Number of Internal 3.5″ Bays | 4 |
| General Information | |
| Brand Name | Chenbro |
| Product Type | Computer Case |
| Product Name | Computer Case |
| Manufacturer | Chenbro Micom Co., Ltd |
| Manufacturer Part Number | RM42300H11*13739 |
| Technical Information | |
| Motherboard Supported | ATX |
| Number of Fans Supported | 1 |
| Features |
|
| Fan Size Supported |
|
