Description
This item is brand-new, factory sealed.
* Nominal diameter: 12-in, 305mm
* Power rating: 60Wrms
* Nominal impedance: Available 8 or 16 ohm
* Sensitivity: 100dB
* Chassis type: Pressed steel
* Voice coil diameter: 1.75-in, 44.5mm
* Voice coil material: Round copper
* Magnet type: Ceramic
* Magnet weight: 50oz, 1.42kg
* Frequency range: 70-5000Hz
* Resonance frequency, Fs: 75Hz

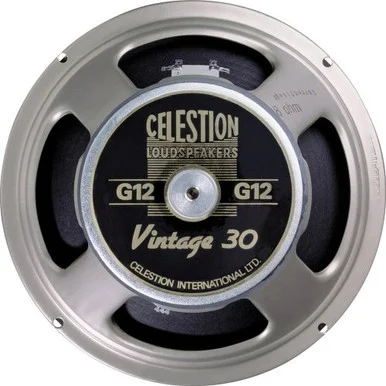

Back in 1986 a new breed of hard rock player was on the rise. To meet the demands of the players & their increasingly ‘hot-rodded’ amplifiers, we set out to develop a modern speaker, capable of handling much more power & overdrive. To achieve this, we coupled our H magnet (the closest in performance to Alnico) w/a new cone & voice coil employing contemporary materials.
Our most revealing speaker, the Vintage 30 features enormously detailed & complex overtones, a warm low-end, a famously rich vocal mid-range & a beautifully detailed top-end. Used singly to reveal the complexities in hand- wired boutique amps, or in quartets for a wonderfully intricate vintage 3D crunch, the Vintage 30 sound has been captured on thousands of recordings from a diverse range of notable players including Slash, Steve Stevens & Peter Frampton.
* Cut-out diameter: 283mm / 11.1in
* Diameter: 309mm / 12.2in
* Magnet structure diameter: 156mm / 6.1in
* Mounting hole dimensions: 7.9mm / 0.31in
* Mounting hole: PCD297mm / 11.7in [Each]
Specs
| Physical Characteristics | |
| Product Material |
|
| Weight (Approximate) | 10.36 lb |
| Depth | 5.31″ |
| Diameter | 12.2″ |
| Cutout Diameter | 11.14″ |
| General Information | |
| Brand Name | Celestion |
| Marketing Information | Back in 1986 a new breed of hard rock player was on the rise. To meet the demands of the players and their increasingly ‘hot-rodded’ amplifiers, we set out to develop a modern speaker, capable of handling much more power and overdrive. To achieve this, we coupled our ‘H’ magnet (the closest in performance to Alnico) with a new cone and voice coil employing contemporary materials. Our most revealing speaker, the Vintage 30 features enormously detailed and complex overtones, a warm low-end, a famously rich vocal mid-range and a beautifully detailed top-end. Used singly to reveal the complexities in hand- wired boutique amps, or in quartets for a wonderfully intricate vintage 3D crunch, the Vintage 30 sound has been captured on thousands of recordings from a diverse range of notable players including Slash, Steve Stevens and Peter Frampton. |
| Product Type | Speaker |
| Product Name | Classic G12 Speaker |
| Manufacturer | Celestion Consumer Division |
| Manufacturer Part Number | T3904 |
| Product Model | G12 |
| Product Line | Classic |
| Technical Information | |
| Minimum Frequency Response | 70 Hz |
| Maximum Frequency Response | 5 kHz |
| Sensitivity | 100 dB |
| Midrange Driver Size | 12″ |
| Application/Usage | Guitar |
| Impedance | 16 Ohm |
| RMS Output Power | 60 W |
