Bogen PCMSYS3 Paging system (Pre-assembled) (PCMSYS3)

Description

This item is brand-new, factory sealed.

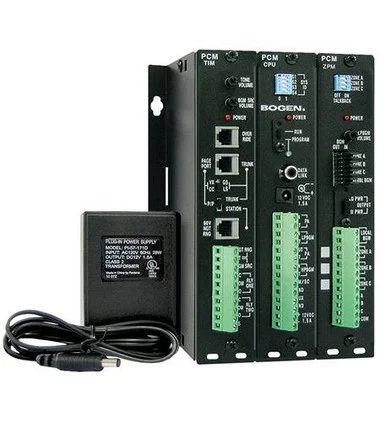

The PCMSYS3 is a pre-assembled and tested 3-zone PCM2000 system with a PCMPS2 power supply. Use it right out of the box for 1 to 3 zone applications or expand it with other PCM modules. Provides all the same great features found in the PCM2000 zone paging system.

Package Contents:

• 1 x PCMTIM Telephone Interface Module
• 1 x PCMCPU Central Processor Module
• 1 x PCMZPM 3-Zone Paging Module
• 1 x PCMPS2 System Power Supply

Features

Package Contents:

• 1 x PCMTIM Telephone Interface Module
• 1 x PCMCPU Central Processor Module
• 1 x PCMZPM 3-Zone Paging Module
• 1 x PCMPS2 System Power Supply

Additional Information:

• Provides 1 to 3 paging zones
• Expandable up to 99 zones*
• Up to 32 programmable paging zone groups
• Emergency All-Zone Override Paging input
• Two-way Communications*
• 250W power handling capacity
• Code Calling
• Background Music distribution
• Works with systems that are central- or self-amplified
• Drives up to 40 self-amplified speakers per zone module
• Night Ringer, 90V and contact closure
• Real-time Clock & Master Clock Synchronization*
• Time Triggered Signaling Tones
• Operates with 70V and self-amplified (24V) paging systems
• Universal Telephone Interface allows simple connection to loop and ground start trunks, paging ports, and to analog 90V station lines
• RJ11 jacks & terminal blocks
• Relay driver outputs
• Two C-form relay contacts
• Setup tone
• Program system features via DTMF

Application/Usage:

Telephone
Paging System
